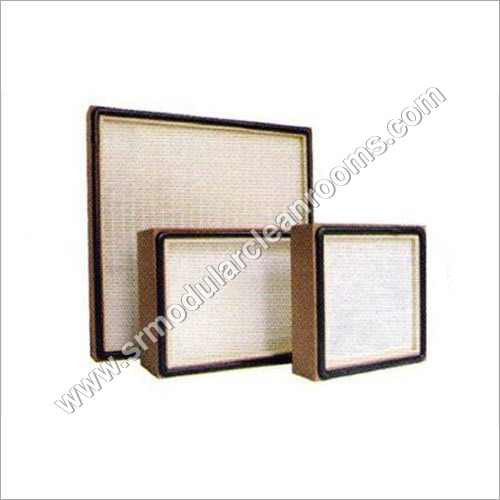

Mini Pleat Hepa Filters

Get a Price/Quote

MOQ : 500 Square Meters

Mini Pleat Hepa Filters Specification

Resistance
<250 Pa

Efficiency (%)
99.97% at 0.3 micron

Capacity
High dust holding capacity

Diameter
Standard rectangular shape; custom size available

Type
Mini Pleat HEPA Filter

Material
Glass fiber media with ABS/aluminum frame

Thickness
50mm / 70mm / 90mm (custom sizes available)

Thermal Shrinkage
1.0% at 120C

Working Temperature
Up to 80C

Application
Cleanrooms, pharmaceutical industries, hospitals, laboratories, and HVAC systems

Flame Resistance
Meets DIN 53438

Standard Size Range
305x305mm to 610x1220mm

Gasket
Neoprene / EPDM

Frame Material
Anodized aluminum / ABS plastic

Edge Design
Knife edge / Gasket seal / Header available

Maximum Humidity
100% RH (non-condensing)

Initial Resistance at Rated Airflow
250 Pa

Eurovent Class
H13 / H14 (as per EN1822)

Filter Media
Microfine glass fiber paper

Recommended Final Resistance
450 Pa

Sealant
Polyurethane

Airflow Rate
200 3400 m/h (depending on filter size)

Mini Pleat Hepa Filters Trade Information

Minimum Order Quantity
500 Square Meters

Supply Ability
, , Square Meter

Delivery Time
6-8 Week

About Mini Pleat Hepa Filters

We feel proud to introduce ourselves as one of the dominant manufacturers, exporters and suppliers of an excellent quality Mini Pleat Hepa Filters that are extensively used in pharmaceutical industry for air filtration applications. These filters are fabricated under the supervision of our experienced professionals utilizing the best grade components that are sourced from the reputed and authentic vendors of the market. Moreover, clients can purchase these Mini Pleat Hepa Filters from us at rock bottom prices.

Features:

Easy to install
Fine finish
Precise dimensions
Sturdiness

Superior Filtration Efficiency

Mini Pleat HEPA Filters ensure outstanding particle retention with 99.97% efficiency at 0.3 micron, meeting stringent industry standards. The microfine glass fiber media and mini pleat design maximize surface area, ensuring high airflow rates and dust holding capacity while maintaining low energy consumption.

Robust Construction and Versatility

Constructed with anodized aluminum or ABS plastic frames and sealed with high-quality polyurethane, these filters offer excellent thermal stability and chemical resistance. They are available in knife edge, gasket seal, or header-edge designs, and can be customized for specific dimensions or installation needs.

Ideal for Sensitive Environments

These filters are purpose-built for settings requiring uncompromised air purity, such as cleanrooms, hospitals, laboratories, and pharmaceutical facilities. Their ability to perform in high humidity and elevated temperatures ensures reliability even in the most challenging operational conditions.

FAQs of Mini Pleat Hepa Filters:

Q: How are Mini Pleat HEPA Filters installed in various applications?

A: Mini Pleat HEPA Filters can be installed using knife edge, gasket seal, or header configurations, which suit a range of housings in cleanrooms, HVAC systems, laboratories, and pharmaceutical setups. The filters are available in different standard sizes and can be customized for unique requirements.

Q: What benefits do Mini Pleat HEPA Filters offer compared to conventional HEPA filters?

A: Compared to conventional HEPA filters, Mini Pleat HEPA Filters offer higher airflow rates, greater dust holding capacity, and lower initial pressure resistance. Their design ensures energy efficiency and longer service life while delivering reliable high-efficiency filtration.

Q: Where are these HEPA filters commonly used?

A: These filters are widely implemented in cleanrooms, pharmaceutical industries, hospitals, laboratories, and HVAC systemsenvironments where maintaining exceptionally clean air is critical for safety and process integrity.

Q: What standards and certifications do Mini Pleat HEPA Filters meet?

A: They comply with Eurovent Class H13/H14 as per EN1822, feature flame resistance according to DIN 53438, and maintain performance in environments up to 80C and nearly 100% relative humidity (non-condensing).

Q: When should I replace a Mini Pleat HEPA Filter?

A: Replacement is recommended when the final resistance reaches 450 Pa or as advised by system monitoring and maintenance schedules. Regular inspections help maintain optimal air quality and ensure efficient system performance.

Q: What is the process behind the high efficiency of these filters?

A: Mini Pleat HEPA Filters use microfine glass fiber media arranged in tightly packed mini pleats, maximizing surface area for particle capture. This enables the filters to trap at least 99.97% of airborne particles down to 0.3 micron in size.

Q: How do you choose the right Mini Pleat HEPA Filter size for your needs?

A: The appropriate filter size depends on factors such as airflow rate requirements, system dimensions, and application type. Standard sizes range from 305x305 mm to 610x1220 mm, with custom sizes available to match specific installation demands.
